3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing

  • 1
  • 2

Brand Name : Skywin

MOQ : 1 set

Price : USD 24500 dollars

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3 Sets per Quarter

Delivery Time : 45-60days

Packaging Details : WOODEN CASE for Export Standard Suitable for Seaworthy

Function : Multi-function

Usage : Pack biscuit/ food

Keywords : Industrial Biscuit Packing Machine

Feature : High Efficiency Easy Operation

Inverter : Siemens brand

PLC & Touch screen : Delta brand

Color : Silver

Contact Now

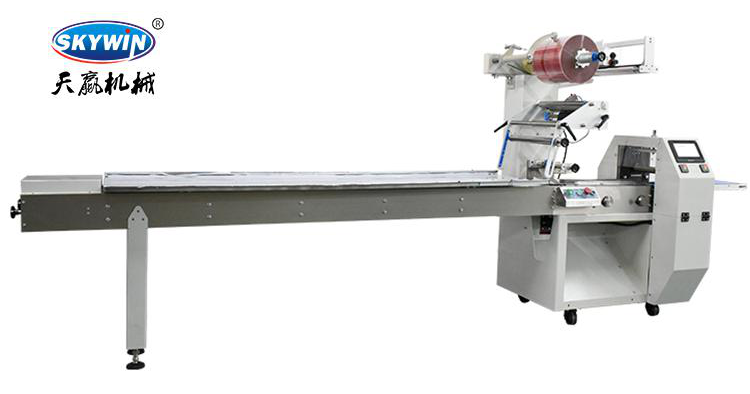

SK-380S Flow Packing Machine





1.Machine Details



★ 3 Servo Motors.

★ Adopt independently developed PLC controlled touch screen display.
★ With a storage function, can store the packaging parameters of a variety of products.

★ High sensitivity photoelectric eye color tracking, automatic detection and input of bag length.

★ Bag length can be set and cut in one step ,saving time and film.

★ Temperature independent PID control, suitable for a variety of packaging materials, sealing beautiful and firm.
★ Adopt the inclined material frame, easy to clean the food slag.
★ Simple and orderly circuit installation, sealed electric control box, effective protection of wire and circuit.
★ Simple driving system,reliable working ,convenient maintenance.
3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing

No. Machine parameter Data
1 Packing Speed 50--- 300packs/minute
2 Bag size (L x W x H)  (80-300) x (35-145) x (5-55)mm
3 Max width of the packing film 380mm
4 Thickness of Packing film  0.04-0.07mm
5 Machine dimension (L x W x H) 5200 x 950 x 1650mm
6 Power consumption 3.6KW
7 Single phase 220V/50Hz





2.Machine Parts



3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing             3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing

3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing              3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing



Feeding conveyor: Worker manual to put product on feeding conveyor, product will go through to film directly.



Bag make device: Articulated bag former strurcute and enble stable bag foming for perfect bag shape.



Rotary end sealing device: The cutters can do link bag, flat end sea or the round whole for difference products.



Temperature controller: Separate PID temperature controller suitable for various packing material.





3.Packing Sample



3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing    3 Servo Motors Automatic Packaging Machine Photoelectric Eye End Sealing
