Small Model 400 MM Biscuit Making Machine Small Capacity Biscuit Production Line

Skywin Small Scale Industry Biscuit Mamking Machine/Small Capacity Biscuit Production Line Price

Skywin Model 400/600 Mini Type Hard and Soft Biscuit Production Line is suitable for producing different kinds of biscuits.Different shape biscuit just need to change the mould, we also can design mould for you as per your details.

A whole line consist of:

1. Horizontal dough mixer, 150-250kg/batch

2  Automatic dough tipper and feeding system

3. Combination Dough Feeding & Sheeting(Including Pre-sheeter, Combined Gauge roll ,

   Separating machine,  Scrap collection & return System .

4. Horizontal Biscuit Forming machine for Soft biscuit and Hard biscuit

5. Tunnel oven, Electric Oven / Indirect  Gas Oven for option, length is depend on capacity.

6. Turning machine 180degree or 90degree design as per the plant length

7. Cooling conveyor

8. Biscuit stacking machine (start wheel stacker or penny stacker)

9. Packing table

10. Biscuit Sandwich Machine and Packing Machine

Operation Workflow:

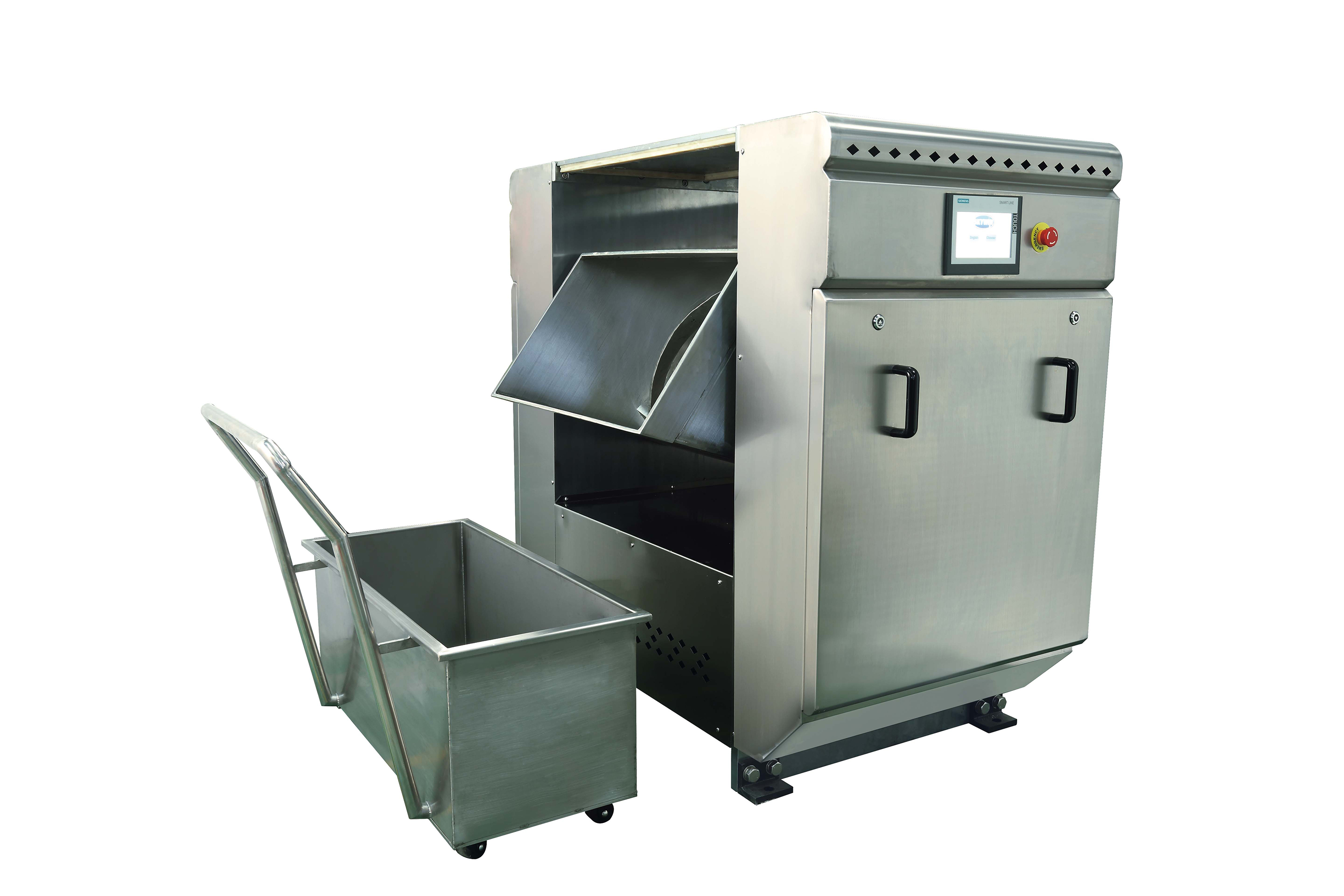

1. Horizontal Dough mixer(For Both Hard Dough and Soft dough)

    Horizontal dough mixer for soft biscuit and hard biscuit dough

    1) Speed from 25r/min to Max. Speed60r/min, frequency speed

    2) SEW/Chinese Brand motor & gearbox

    3) Full stainless steel 304#

    4) with one Dough Tub capacity 150-500kgs

    5) Tub thickness 5mm and 8mm

    6) Newest design touch screen Siemens PLC control system

     2. Combination Dough Feeding & Sheeting

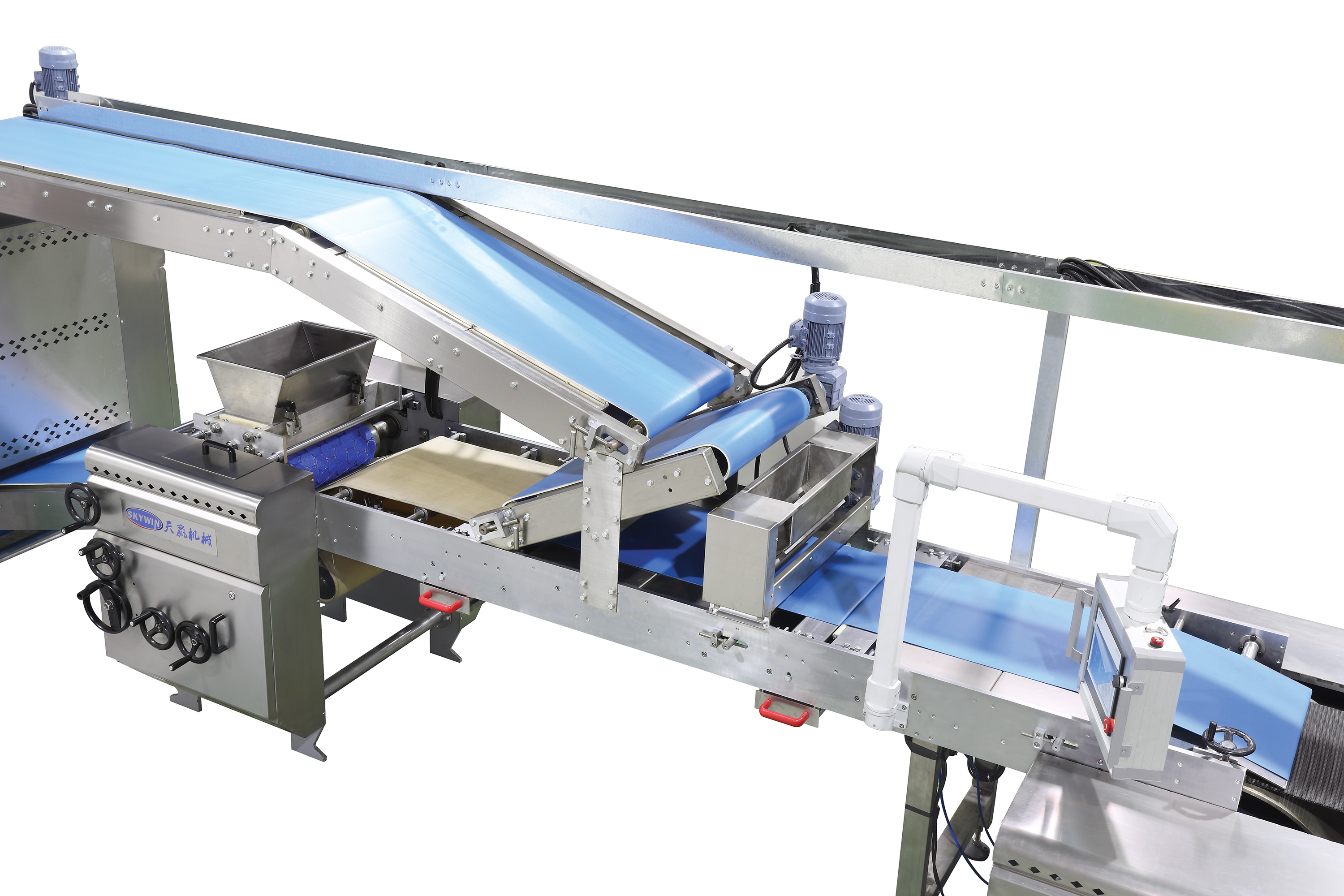

          Pre-sheeter & Combined Gauge roll

           Combination dough feeding and Sheeting machine for hard biscuit sheeting.

           Dough sheeting thickness can be 1mm.

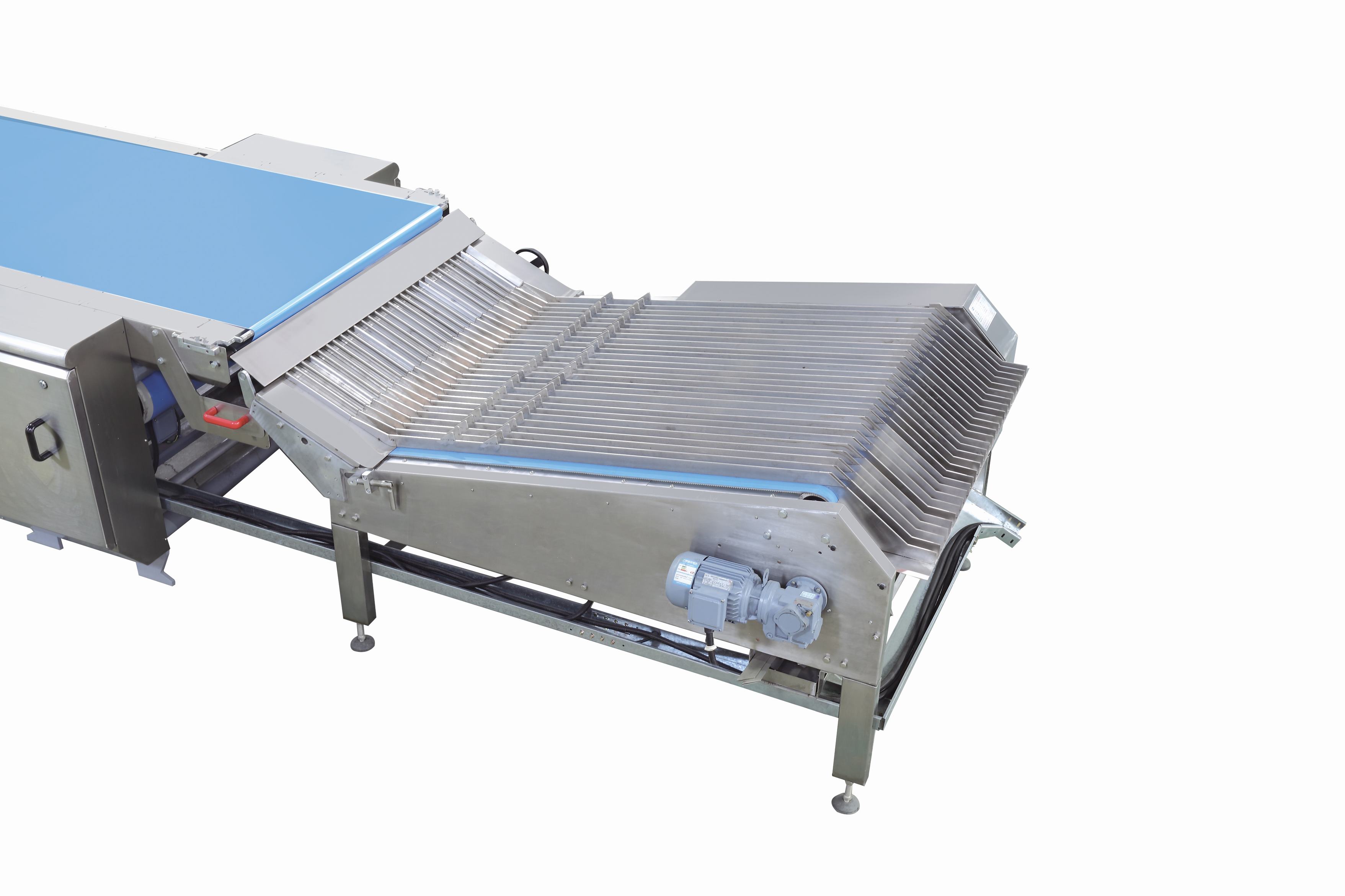

         Separating machine,  Scrap collection & return System

           For hard biscuit making,after press the dough into a sheet and cut the biscuit pattern,

           separate the scrap ,collect and return back to Sheeter .

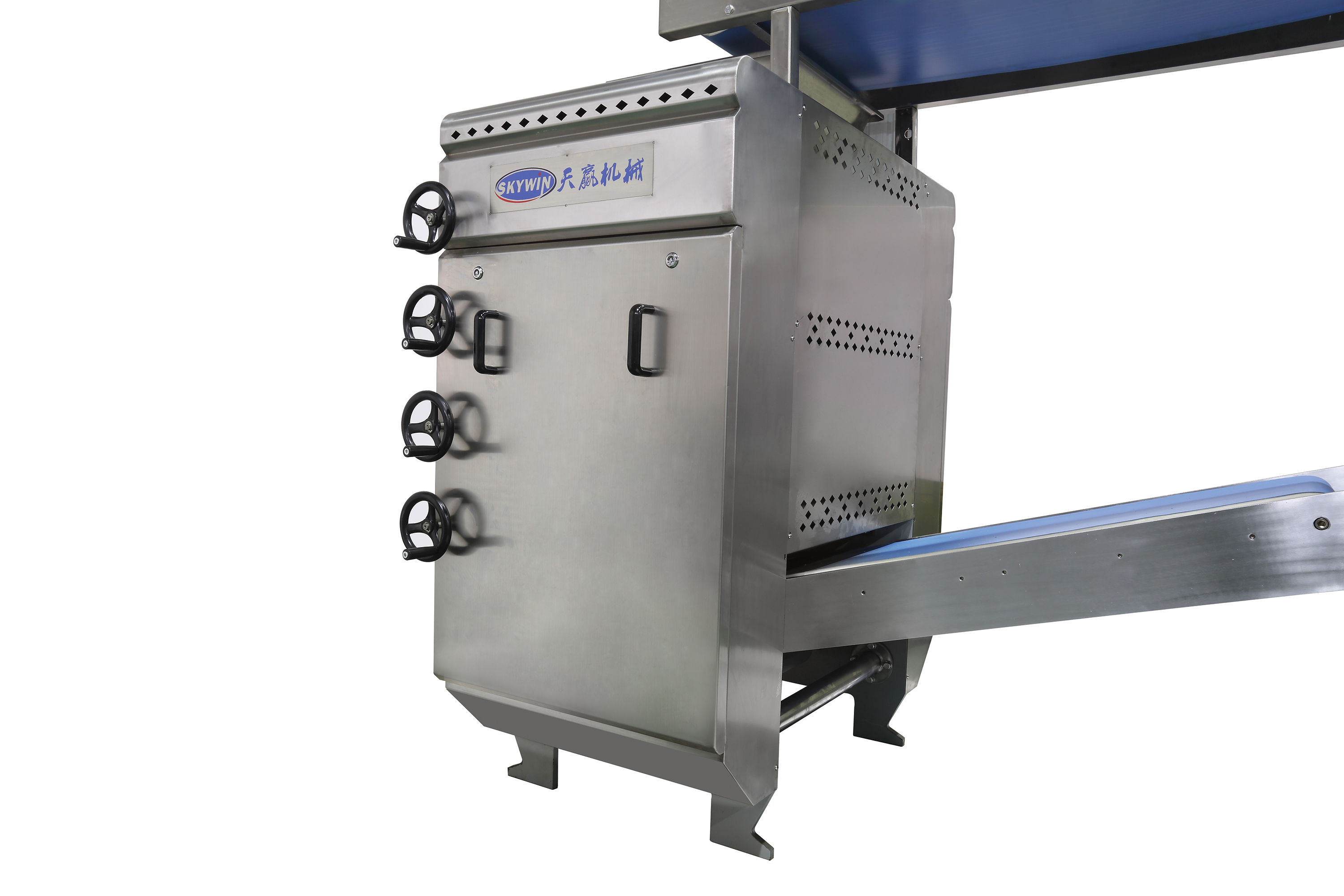

    3. Horizontal Biscuit Forming machine

        Two function biscuit forming machine for soft biscuit and hard biscuit .

        Different shape biscuit just need to change the mould, we also can design mould for you as  your details.

        Soft Biscuit Forming

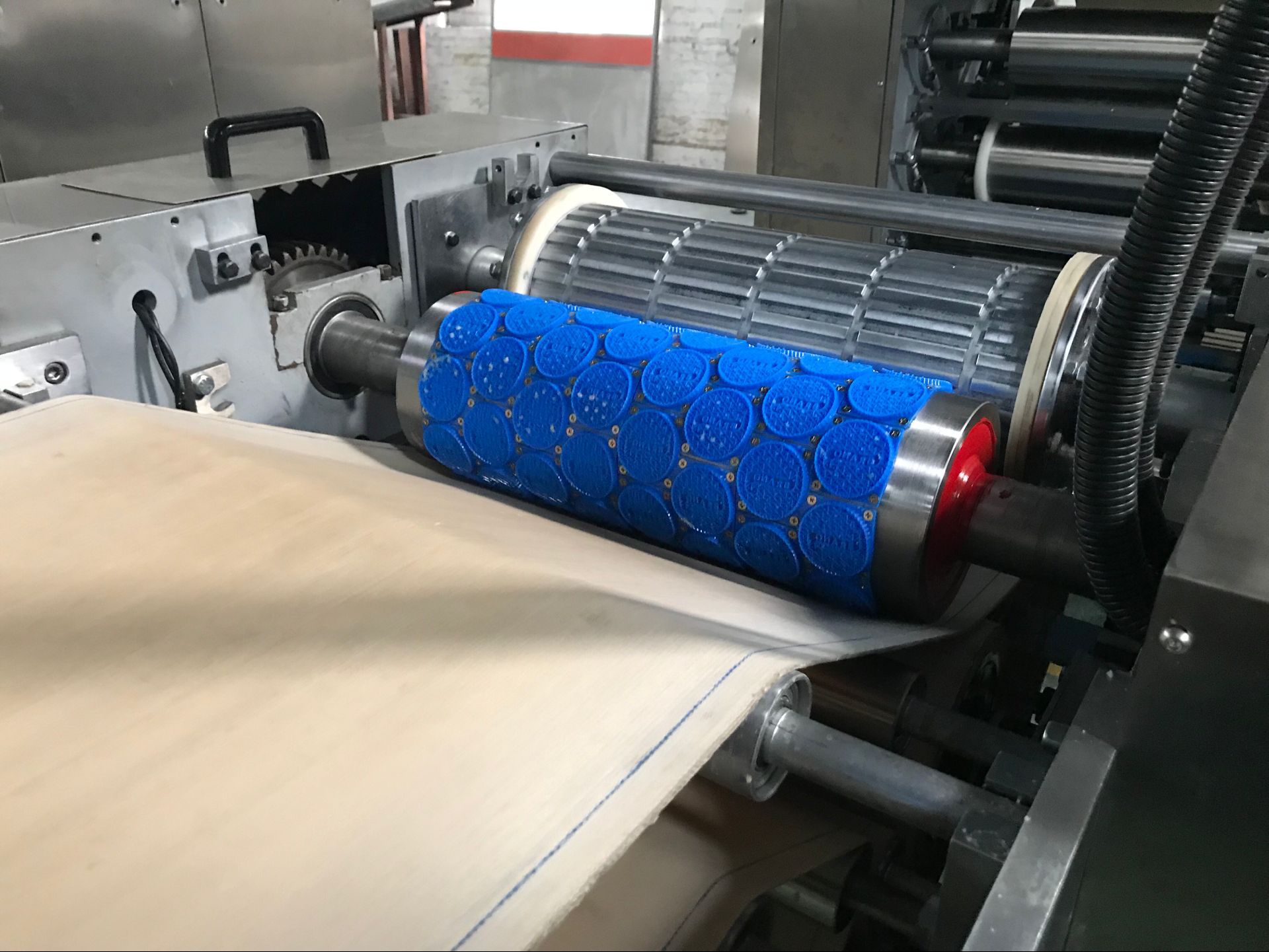

         Hard Biscuit Forming

         Biscuit Sample  & Mould

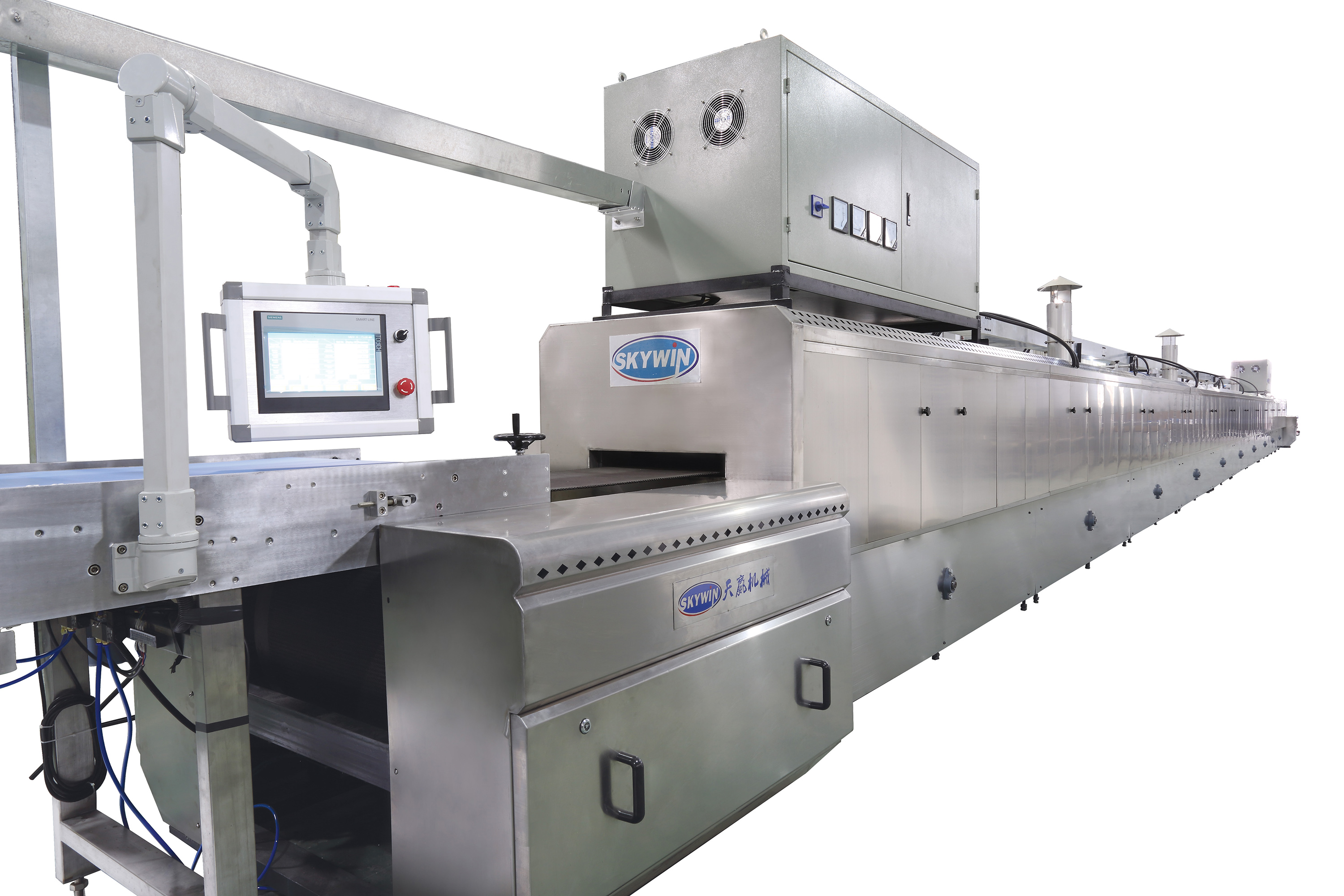

Electric Tunnel oven

1) Oven body length 30M

2) 30M divided into 2 temperature chambers

3) Schneider inverter and PLC touch screen

4) Main motor and gearbox Germany Famous brand SEW

5) Main bearing NSK

6) Pneumatic automatic tracking and adjust belt and tension

7) Mesh belt width 400mm

8) Oven cover by 304# Stainless steel, 1.2mm

9) Heat resistant material: rock wool

Both side: 250mm thickness; Bottom 230mm thickness, top 350mm thickness rock wool.

10) 3 set pneumatic tracking installed on enter oven, exit oven and oven bottom

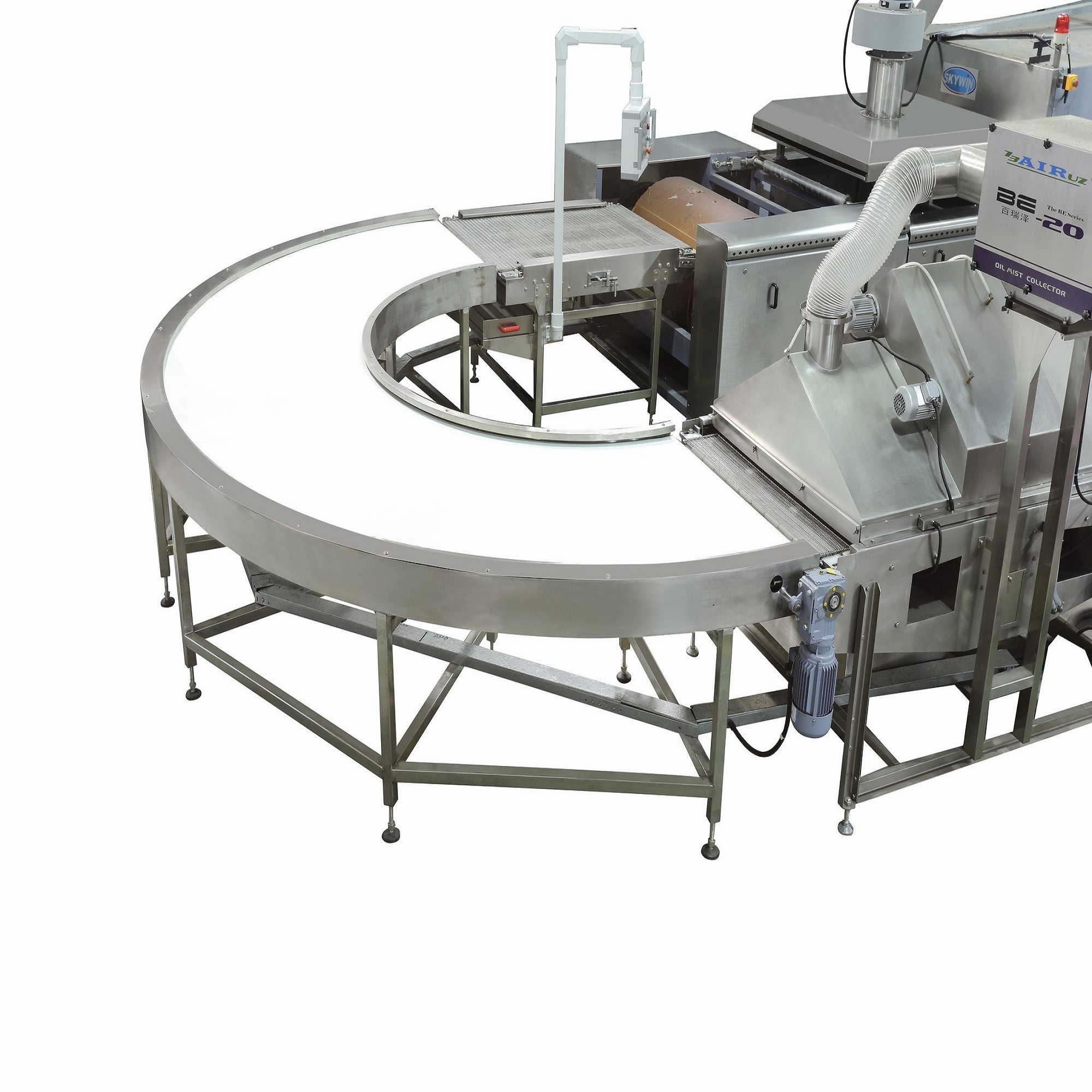

 5.Turning Machine & Stacker

 s









 6. Biscuit Sandwich & Packing



Two lane creaming machine connect flow packing machine

1. Two lane output sandwich biscuit about 1200pcs/min

2. Independent frequency inverter control and adjust

3. Siemens inverter and PLC touch screen and Schneider electric

4. Delta servo motor and gearbox

5. All pushers on creaming machine made by stainless steel

6. Safety protection cover

7. Waste collection cabinet

8. Flow packing machine model SK-320, Bag size: Length 80-500mm, Width 35-145mm, Height 5-55mm

9. Packing speed: 35-300 bags/min

10. Packing type: 1x1,1x2,... 1x6 - 2x1, 2x2,...2x6
